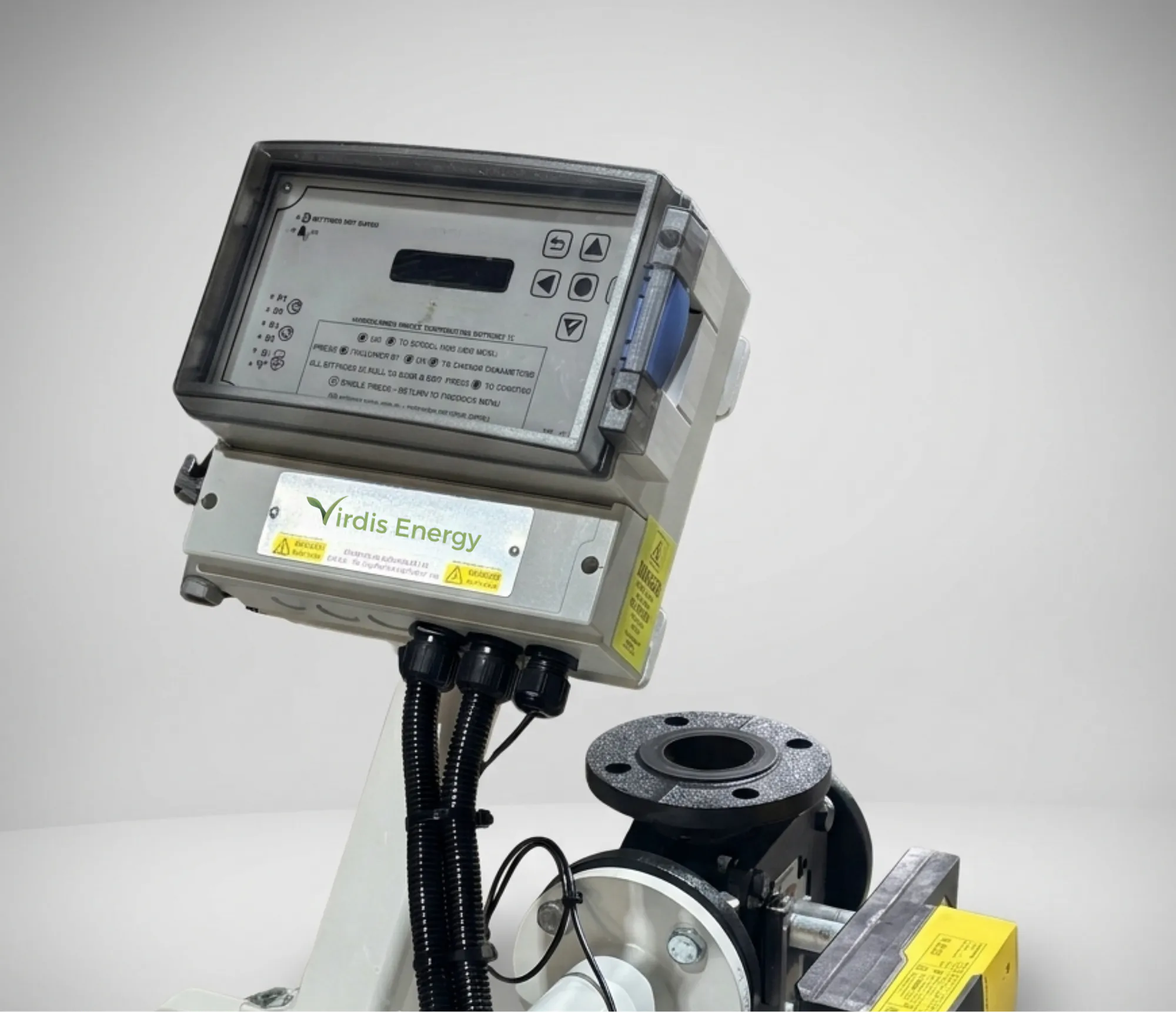

VIRDIS GP+ CONTROLLER COMPLETE BOXED C/W FIBOX ENCLOSURE COMPRISING OF BOTTOM TERMINAL BOARD AND FRONT DISPLAY BOARD INCLUDING PUMP CONTACTORS AND OVERLOADS
An advanced purpose-designed PID (Proportional-Integral-Derivative) regulator, engineered tomanage and maintain the secondary flow temperature on the GP Series
ADDITIONAL COMPONENTS MAY BE NEEDED WITH THIS CONTROLLER DEPENDING ON YOUR UNIT. PLEASE CONTACT US BEFORE PURCHASING.
The GP Controller is an advanced purpose-designed PID (Proportional-Integral-Derivative) regulator, engineered to
manage and maintain the secondary flow temperature on the GP Series range of Packaged Plate Heat Exchangers.
Temperature regulation is achieved through a PT1000 temperature sensor connected to the controller. Based on sensor
feedback, the controller adjusts flow temperature by modulating a 24V 0-10V actuator connected to a 2-port, 3-port or
4-port control valve. The GP Controller also facilitates the operation of up to two primary and two secondary pumps, depending on the
configuration of the associated GP Series.
